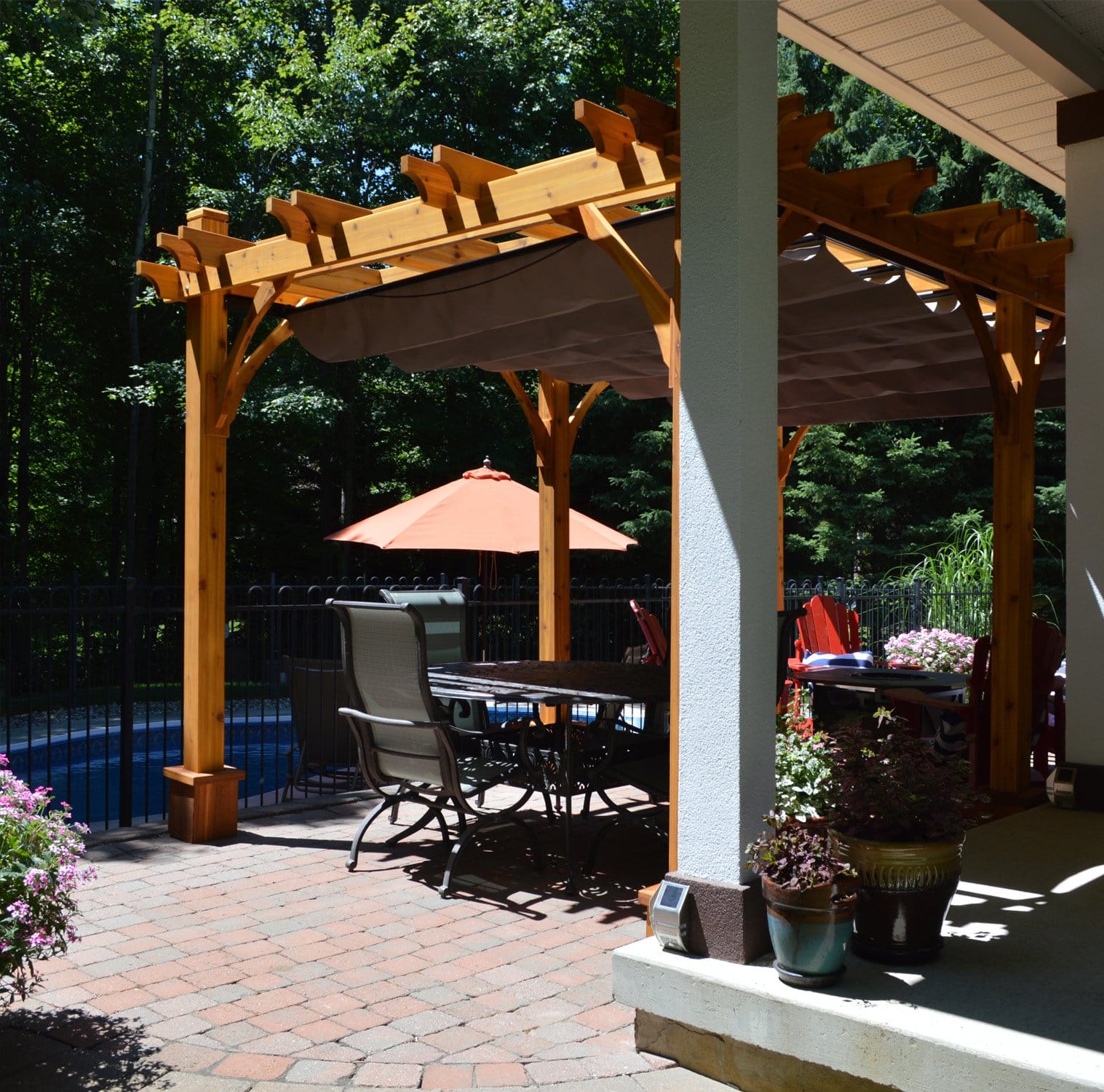

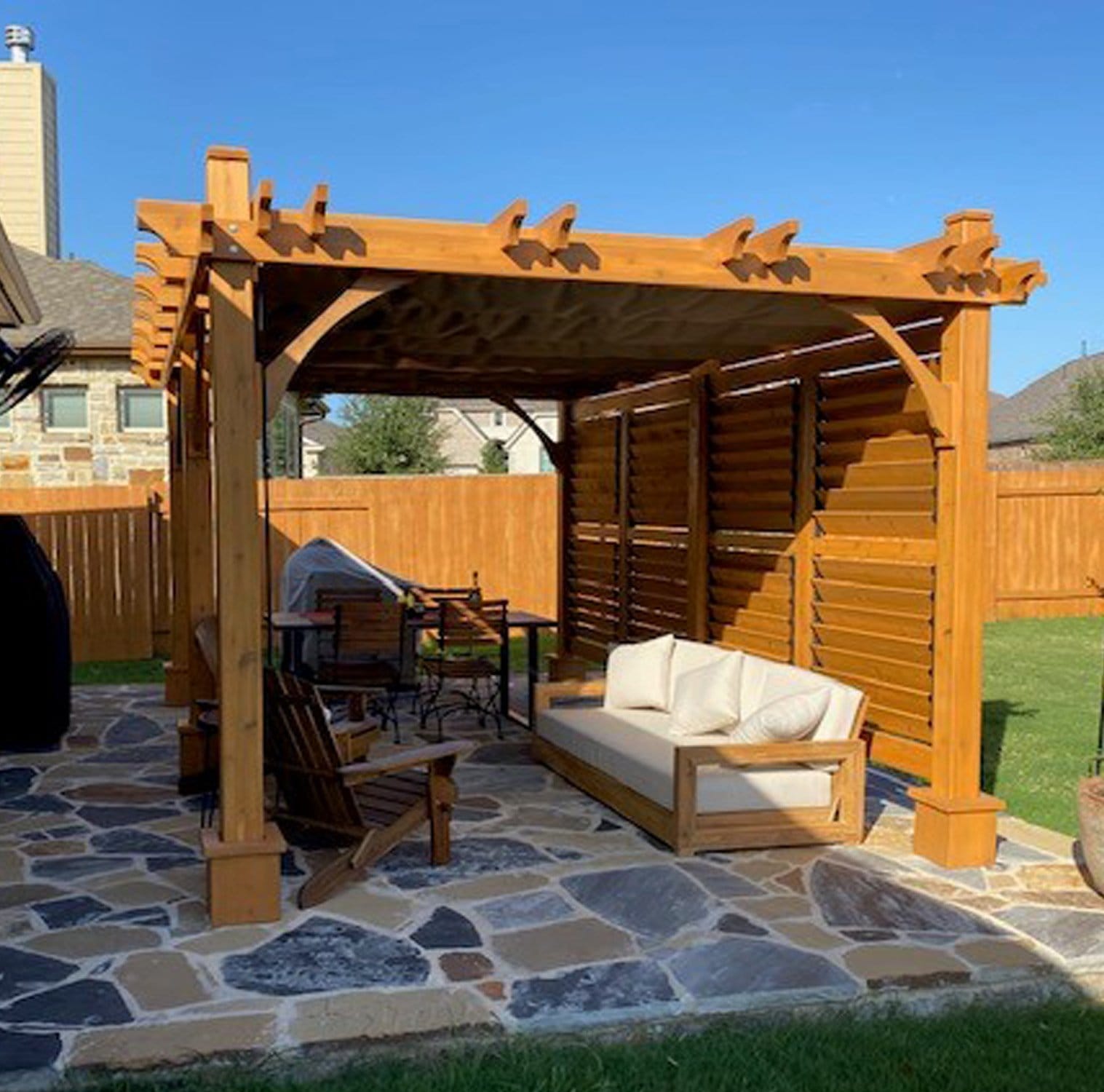

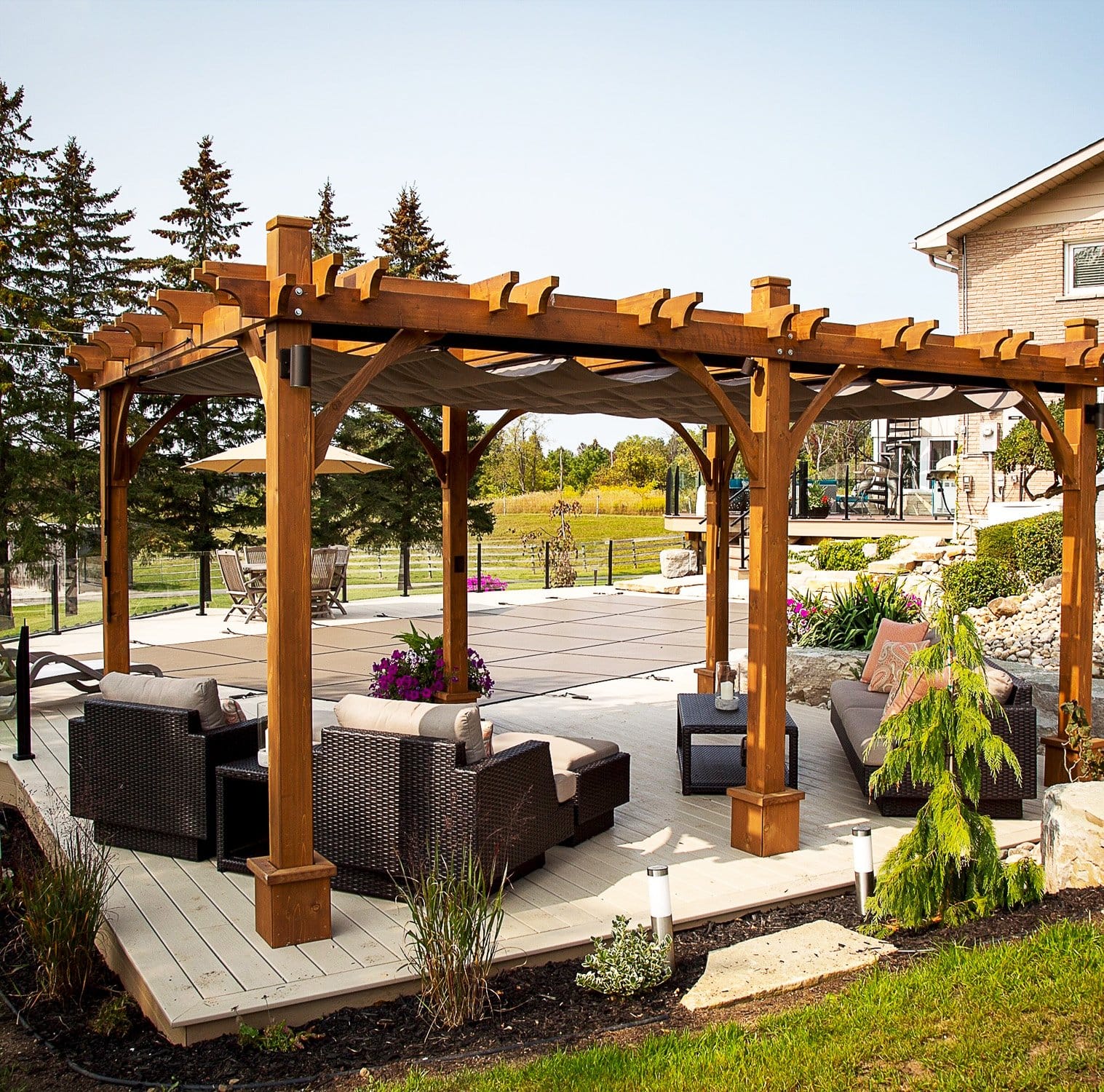

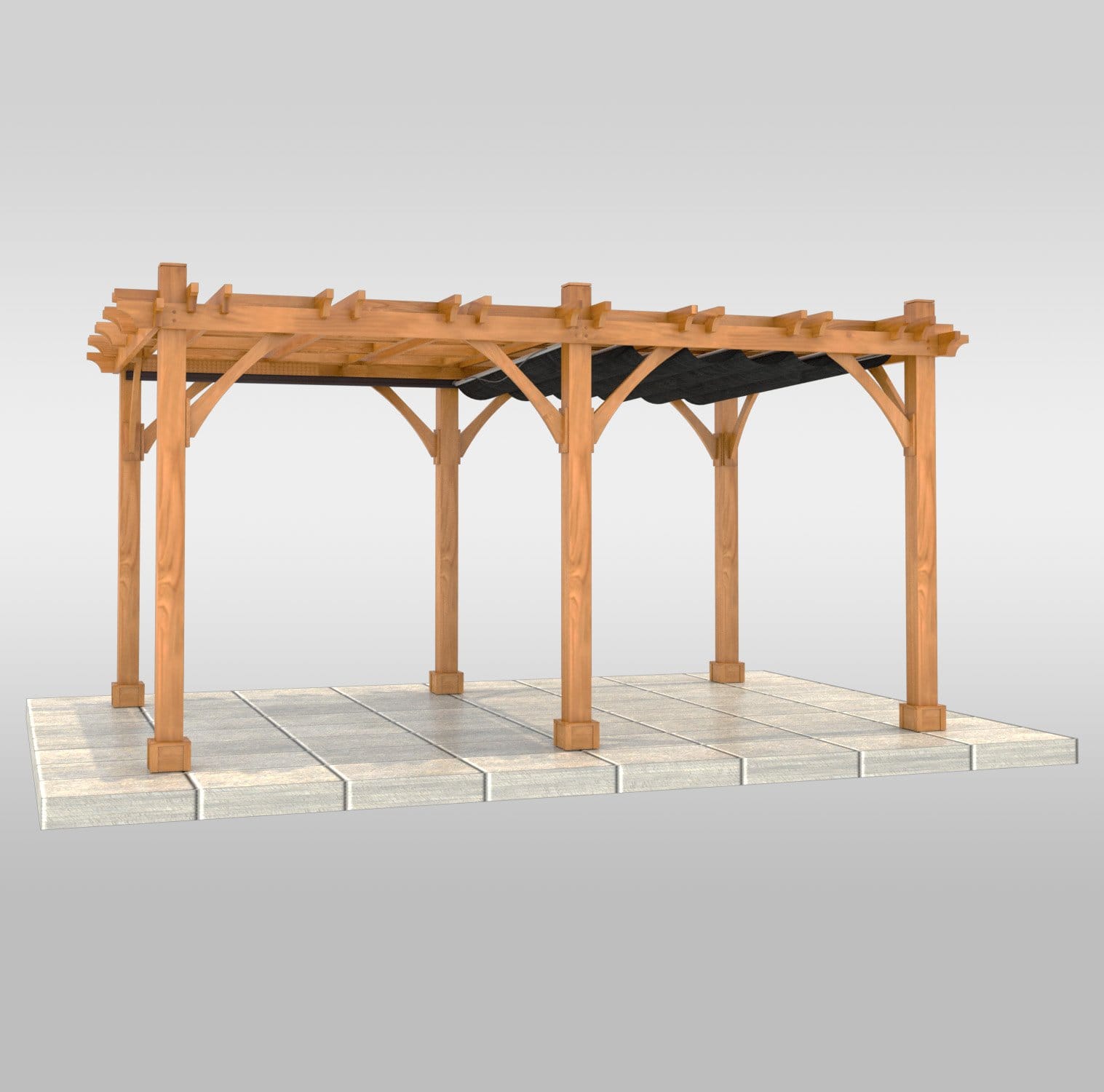

Our 5 star rated 10×16 modern pergola kit has an open-air design that can add charm and functionality to any outdoor living space. Constructed from sustainably harvested Western Red Cedar.
Our pergola assembles using only basic tools such as a screw gun, level and wrench. Assembly usually takes between 6-8 hours with 2 people. Post mount footings not included. (we recommend!)
Sculptured top joists and girders crisscross in both directions providing a architecturally stylish and beautiful feature. Engineered 5 ½ in. x 5 ½ in. vertical uprights results in a structural post that will have less surface checking and twisting. All pergola assembly hardware included with kit.
Take advantage of our weekend customer support line (1-888-658-1658) with any assembly questions.

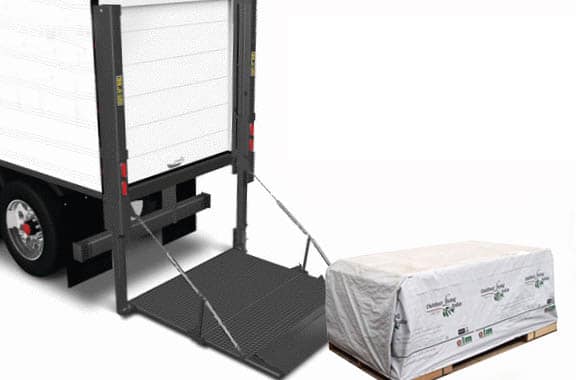

Ships directly to your driveway. You may be required to help the delivery driver offload the crate (15 min).
We recommend using a Post Mount Bracket to secure pergola posts to your foundation.
Although the pergola is stable and strong without installing a bracket, installation of the brackets will firm up the structure and lessen the amount of sway that may occur with your structure. In areas of high winds, please check with your local building authority to confirm suitability.
The First Step
The First Step is to line up your posts with the post mount brackets so you can drill the proper holes. Watch our Lining Up Posts & Brackets video to the right.
1. Line up Post Mount on bottom of post and mark hole location.
2. Using OLT’s footprint, drill holes in your foundation for Post Mount Rebar.
3. Make sure Post Mounts Brackets are installed at the proper height, adjust as necessary.
4. Fill drilled hole with Exterior Epoxy Glue as well as apply to Rebar Post.
5. Push or bang Post Mount Bracket in hole and let expoxy cure.
6. Line up Pergola Post holes previously marked with Post Mount Bracket holes.
7. Slide 6” carriage bolt through holes.
8. Slip washer on and tighten nut with wrench.
9. Complete remaining posts.
The Second Step
Different surfaces will require different styles of post mounts. The Second Step is to follow the specific instructions for either an Existing Slab Installation (see video here), or for Concrete Set Up Installation (see video here).
On the morning of the delivery, call the carrier to confirm your shipment is on schedule. Carriers typically deliver between 9:00 a.m. and 5:00 p.m. – make sure you are present or have someone available to receive the shipment.
Make sure your delivery location is easily accessible to the truck and driver. Move vehicles if necessary. Drivers are not allowed to deliver freight that they deem dangerous to themselves or that may damage your property etc.
When the Truck Arrives:
While the unit is still in the truck, confirm the shipping label has your name, address and is the correct product. If not, call us immediately.
Damages – IMPORTANT
At the time of delivery, DO NOT SIGN until you have inspected the freight! Look inside the truck to make sure the unit is not damaged before unloading.
Occasionally thedriver will be in a rushand want you to sign quickly. It is your right to take a few minutes to inspect the freight.
If you notice any damages, please make the notation ‘damaged’ on the delivery receipt upon signing for the receipt of the goods. Take pictures of anything you think looks like damage, including the pallet and call our Customer support line at 1-888-658-1658.
If there is damage, it is usually quicker and easier to send replacement pieces.
It is our policy to replace any broken or damaged pieces immediately and to your satisfaction if this notation is shown on the proof of delivery on the carrier’s copy.
Remember – You do not have to accept the freight! If your freight shows catastrophic damage, ie – not on a pallet or with multiple pieces broken and sticking out and without our plastic wrap, you can refuse the delivery. Please call our customer support line at 1-888-658-1658 immediately so we can advise you how to proceed.
